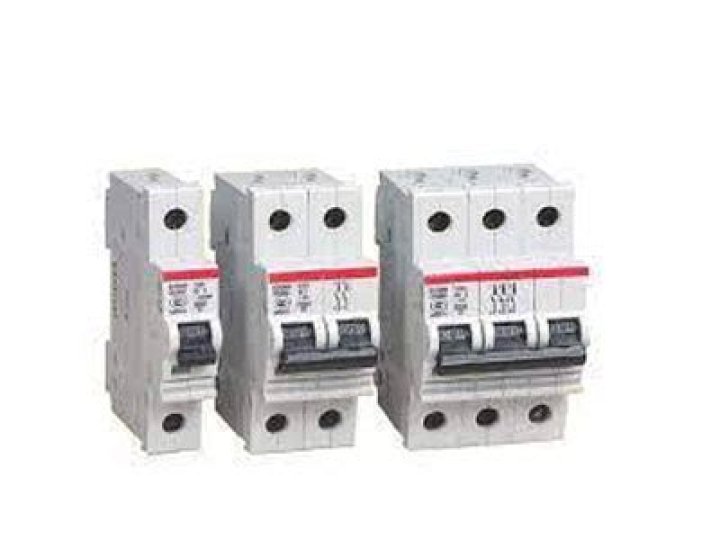

Like a Fuse , A MCB is connected in series with the main line in the household circuit.
Which should be connected first Rccb or MCB?
MCB always should be connected first because if there is any fault occurs between the RCCB and MCB when RCCB is connected first the MCB could not protect so the RCCB and the circuit may be damaged.
Is MCB a directional?
Typically, low amperage MCB’s (ie sub 125A) will be totally impervious to the “direction” of connection. Typical pole repulsion circuit breakers with arc splitters are pretty independent of orientation though – they have to be as often fault current flow may be bi directional.
Which wire is used in MCB?
Construction of MCB The switching system consists of a fixed and a moving contact to which incoming and outgoing wires are connected. The metal or current carrying parts are made up of electrolytic copper or silver alloy depending on the rating of the circuit breaker.
Can I connect neutral and ground together?
No, the neutral and ground should never be wired together. This is wrong, and potentially dangerous. When you plug in something in the outlet, the neutral will be live, as it closes the circuit. If the ground is wired to the neutral, the ground of the applicance will also be live.
How do you install a circuit breaker step by step?
Basic Steps for Installing a Circuit Breaker
- Shut Off the Power at the Main Panel.
- Install a New Cable Clamp.
- Connect the Ground Wire into the Ground Bar.
- Place the Neutral Wire into the Neutral Bus.
- Install the Actual Circuit Breaker Device.
- Remove the knockouts from the panel cover.
Does it matter which wire goes where on a double pole breaker?
It doesn’t matter unless you want to follow a color convention that typically isn’t used in residential work; primarily because most of the wire is cable assemblies and not 12/3 where you’d have a red wire as well.
What is a MCCB circuit breaker?
MCB is a miniature circuit breaker which is used to break small currents. Like in domestic LT circuits. The ratings usually end up to 100 A. MCCB is a Module case circuit breaker which has a rugged construction as it can break larger currents usually from (100-1000A).
How do you wire a circuit breaker?
To wire a breaker box, attach the grounding wire to the metal bar with setscrews, remove 1/2 inch of insulation from the wires, insert them into the circuit breaker, and push on the circuit breaker to lock it into place. Before working on a breaker panel, turn the power off.
What is a bad circuit breaker?
A breaker may be bad if a circuit running from the breaker panel box has lost power. A process of elimination can determine if a faulty breaker is the problem. Test to see if the breaker has simply been tripped.
What is the difference between MCB MCCB RCCB?
MCB (Miniature Circuit Breaker) Rated current not more than 100 A.
