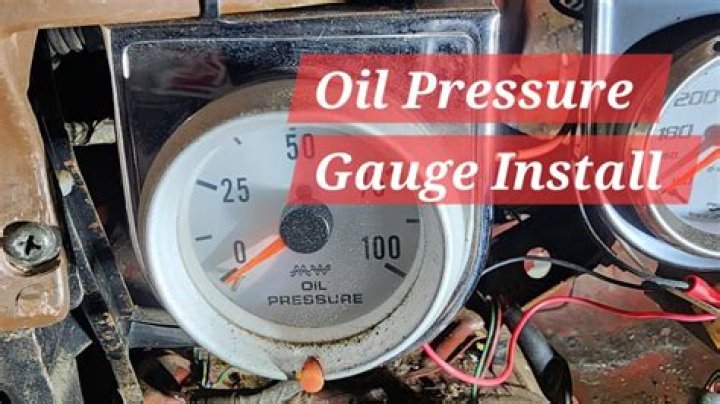

Choose a suitable location to mount the oil pressure gauge; mount the gauge so it is easily viewed while driving. Common mounting locations for aftermarket oil pressure gauges include under the dash, on top of the dash, or set into the dashboard.
Where is the oil pressure gauge on a big block Chevy?
GM INSTALLATIONS: The correct location on most GM V8-engines to install the oil pressure sender is under the distributor housing at the rear of the block. Use the 2 piece bushing kit provided to allow the sender to be mounted at a 45-degree angle pointing towards the driver’s knees.
Should I install an oil pressure gauge?
Installing an oil pressure gauge is important as this is the best way to keep an eye on your oil pressure. This is not a simple task and should be done by a professional. The time, the needle dips wildly downwards and then back up to a normal level, there can be already damage or drastically low oil level.
How do you hook up a oil temp gauge?
Fit the plug adapter in place of the plug. Screw the temperature sender unit into the adapter and join the wire to the terminal on the sender unit. Refill the engine with oil and test the system….Again you may need an adapter to fit the sender.
- Position gauge.
- Drill out.
- Fit gauge.
- Wire up.
- Capilary tube.
- Sump plug adaptor.
How do you install an oil pressure sending unit?
How to Change an Oil Pressure Sending Unit
- Raise the hood of the vehicle.
- Remove the electrical connector from the oil pressure sending unit.
- Loosen the sending unit with a deep-well socket or a wrench, whichever fits.
- Wrap some Teflon tape around the threads of the new sending unit to prevent any possibility of leaks.
What is a temperature sending unit?
The temperature sending unit, more properly known as a temperature sensor, is one of the most important sensors in your car. It is the sensor that tells the computer when the engine has warmed up sufficiently for the computer to pay attention to the many other sensors on the engine and exhaust.
How do you install an oil temperature gauge on a car?
To install a new oil temperature gauge, you will need the tools and step-by-step guide below. Disconnect the negative battery cable. You can mount the temperature gauge in a few different ways. You can use a mounting panel by installing the panel in position and using 2 sheet metal screws.
How accurate is a water temperature gauge for oil temperature?
While a water temperature gauge gives a fairly accurate reading of the engine temperature via the cooling system, it does not directly tell you much about the temperature of the engine oil. For this you need a special oil temperature gauge.
How do you wire a temperature gauge to an ignition switch?
Connect a wire to the gauge stud to the sender unit. Secure the end of the wire with a nut and a lock washer or an eyelet terminal. Install the terminal on the sender unit stud. Tape the wire in position so it will not touch any hot engine parts. Run wire from the temperature gauge to the ignition switch.
How do I check the oil temperature in my sump pan?
For this you need a special oil temperature gauge. These gauges measure the oil temperature with a sender unit, similar to that used for water gauges, which fits directly into the sump pan to give an accurate reading of the temperature.
