Single mode systems are generally more expensive. Multimode fiber has a larger core and is recommended for fiber runs less than 400 m (1300 feet). The grade of multimode fiber affects its distance and bandwidth capabilities. Multimode systems are generally less expensive.
What is the difference between multi-mode types?
Multimode fiber has a relatively large light carrying core, usually 62.5 microns or larger in diameter. Single-mode fiber has a small light carrying core of 8 to 10 microns in diameter. It is normally used for long distance transmissions with laser diode based fiber optic transmission equipment.
What is the drawback of multimode fiber?
Like singlemode, multimode fiber provides high bandwidth at high speeds, but transmission is limited to shorter distances than singlemode. (In longer cable runs, the multiple paths of light in a multimode fiber tend to create signal distortion).
Which is better to use single mode or multimode fiber cable?
Multimode optical fiber continues to be the more cost-effective choice over single-mode optical fiber for shorter-reach applications. In a large data center with thousands of links, a multimode solution can provide substantial cost savings, from both a transceiver and power/cooling perspective.
Is SFP-10G-SR single mode or multimode?
| Models / Specs | Data Rate | Fiber mode |
|---|---|---|
| SFP-10G-SR | 10G | Multimode |
| SFP-10G-LR | 10G | Single mode |
| SFP-10G-LRM | 10G | Multimode |
| SFP-10G-ER | 10G | Single mode |
Do I need 10GbE?
The average computer doesn’t need a 10gb connection and can cope just fine on traditional gigabit Ethernet. Unless you’re in need of a faster connection — typically for work purposes — you might find yourself paying unnecessary prices for high speed you just don’t need.
How do I know if my SFP is single mode or multimode?
As with Singlemode SFPs, Multi-Mode SFPs are identified by the color of the Bale Clasp:
- Black color coded bale clasp designates a Multi-mode SFP.
- The color of the compatible fiber optic patch cord or pigtail is orange.
What is cheaper multimode or single mode fiber?
Generally, single-mode fiber is more affordable than multimode. The cost of single-mode fiber is reduced by half when constructing a 1G fiber optic network, in hopes of it becoming 10 G or faster ultimately, while the cost of OM3 or OM4 multimode increases roughly 35% for SFPs.

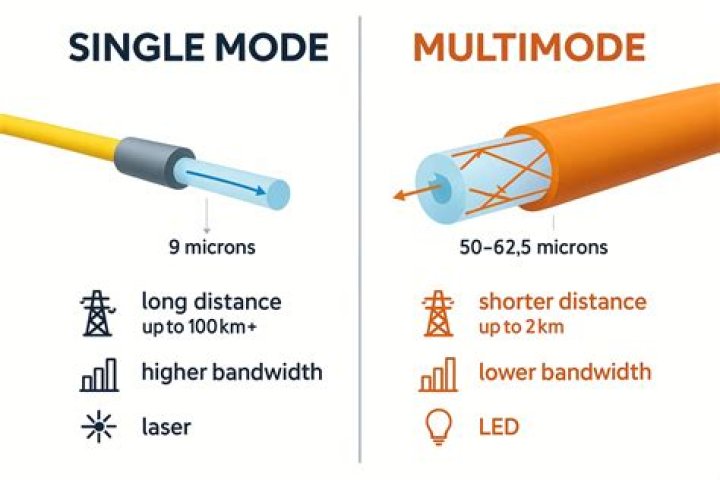

What is the difference between single mode and multimode fiber optic cable?
Left: Single Mode fiber is usually 9/125 in construction. This means that the core to cladding diameter ratio is 9 microns to 125 microns. Multimode fiber optic cable has a large diametral core that allows multiple modes of light to propagate.
What is the difference between singlemode and multimode?
Multimode’s core size is five to six times larger in diameter than singlemode, which allows for much greater light-gathering capacity and facilitates the use of cheaper electro-optic devices.
What is stepstep-index multimode fiber?
Step-Index Multimode Fiber. Due to its large core, some of the light rays that make up the digital pulse may travel a direct route, whereas others zigzag as they bounce off the cladding. These alternate paths cause the different groups of light rays, referred to as modes, to arrive separately at the receiving point.
What is a few-mode fiber?
Multiple modes or light paths travel down the fiber at once, which has traditionally limited transmission distance and bandwidth – but this is being considered as a modulation format for “few-mode” fiber, which we aren’t discussing here.
