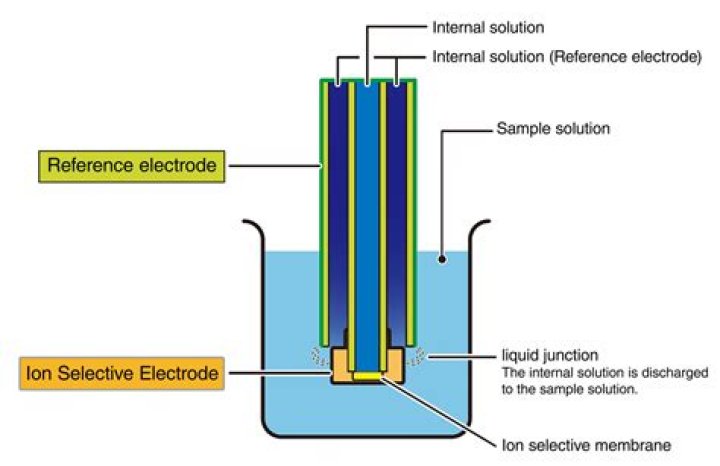

A reference electrode is an electrode which has a stable and well-known electrode potential. The high stability of the electrode potential is usually reached by employing a redox system with constant (buffered or saturated) concentrations of each participant of the redox reaction.
What is secondary reference electrode?
In general, secondary reference electrodes are electrodes of the second kind, i.e. metal electrodes coupled to a solubility equilibrium of a salt of this metal and an electrolyte solution containing a fixed concentration of the anion of the sparingly soluble metal salt.
What is primary reference electrode give example?
The Standard Hydrogen Electrode (SHE) is considered the primary reference electrode as it defines the zero point in the electrochemical scale. Saturated calomel electrode (SCE), Silver-silver chloride (SSC) saturated, Copper-copper sulphate (CCS), and.
Which are used as secondary reference electrodes?
However, this electrode is impractical in routine usages, thus secondary reference electrodes, such as calomel, sulphate, and silver/silver chloride (Ag/AgCl) are used [80]. The potential developed is determined by the chloride concentration of the inner solution, as defined by the Nernst equation.
Why is an SCE electrode a reference electrode?
The saturated calomel electrode (SCE) is a reference electrode based on the reaction between elemental mercury and mercury(I) chloride. The electrode is normally linked via a porous frit to the solution in which the other electrode is immersed.
Why is reference electrode used?
Reference electrode acts as a potential parameter to determine the exact potential difference between working and counter electrodes by minimizing the potential drop (loss) in the respective system.
What is primary reference electrode and secondary reference electrode?
Primary reference electrode: The standard hydrogen electrode is called a primary reference electrode. Secondary reference electrode: The electrode whose potential is determined by connecting to the standard hydrogen electrode is called a secondary reference electrode.
What is secondary electrode give two examples for secondary electrode?
Such electrodes are known as secondary standard electrodes. Two such electrodes arc: Calomel Electrodes. Silver Electrodes.
What is primary and secondary electrode?
Explanation: Standard hydrogen electrode is considered as the primary reference electrode. Calomel electrode whose potential is obtained by connecting it to the standard hydrogen electrode acts as a secondary reference electrode.
Is Quinhydrone electrode a reference electrode?
This electrode is frequently used as a reference standard because it is more conveniently applied than the standard hydrogen electrode. (h) Glass electrode.
Why is a secondary standard electrode used?
The hydrogen electrode itself is used only in basic studies and some nonaqueous solutions. In order to avoid these difficulties other electrodes that can be prepared easily and whose electrode potentials are constant under certain conditions have been devised. Such electrodes are known as secondary standard electrodes.
What is Calum electrode?
A calomel electrode is a type of reference electrode that is based on reactions between mercury (I) chloride (calomel) and elemental mercury. The calomel electrode’s structure consists of an outer glass tube that is fitted with a frit at the bottom. This permits electrical contact with a solution outside the electrode.
What is a reference electrode in chemistry?
A reference electrode is a half cell with an electrode potential which establish fast, constantly, repeatable and stable over time. If you state potentials you should always state the reference electrode against which you determined the potential. If you want to measure conforming to standards you should use the platinum-hydrogen electrode.
What is a low-maintenance reference electrode?
Low-maintenance reference electrode for standard-compliant potential measurement in electrochemistry. Mercury-free, without electrolyte and exchangeable hydrogen cell. Gas diffusion electrodes for fuel cells, batteries and electrolyzers. Our desire to understand electrochemistry is reflected in our products of measurement technology.
What are the advantages of gas diffusion electrodes?
Heatable measuring cell for half-cell measurements and corrosion measurements. Gas supply to the working electrode possible, therefore well suited for gas diffusion electrodes. Low-maintenance reference electrode for standard-compliant potential measurement in electrochemistry.
How does a hydrogen potential electrode work?
The arising hydrogen fills the PTFE-tube and leaks out of the platinum-palladium electrode where – according to the ions in the solution – a hydrogen potential sets. The hydrogen potential can be gripped on the gold-plated socket in the electrode’s head. Once activated, the electrode works continuously for 6 months.
