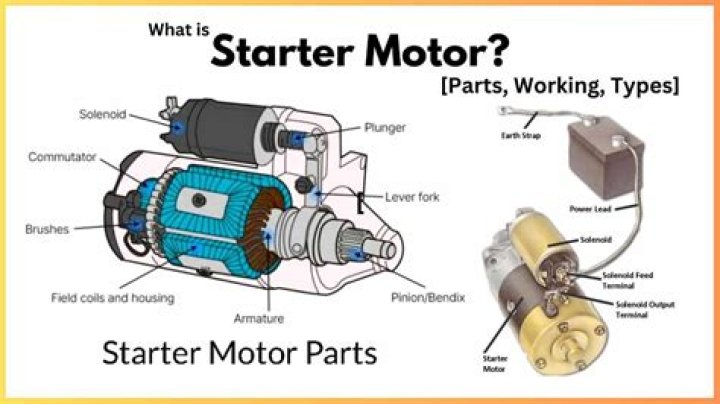

A starter malfunction can have different causes: Electrical connections faulty. Solenoid switch (engaging relay) stiff or faulty. Electric motor damaged electrically.
How do you troubleshoot an electric motor?
Troubleshooting Guide – AC Motor
- Motor is wired incorrectly. Refer to the wiring diagram to verify the motor is wired correctly.
- Motor damaged and rotor is striking stator. Rotate the motor’s shaft and feel for rubbing.
- Power supply or line trouble. Check the source of power, overload, fuses, controls, etc..
What is the drawback of DOL starter?
Disadvantages of DOL Starter It does not reduce the starting current of the motor. High Starting Current: Very High Starting Current (Typically 6 to 8 times the FLC of the motor). Mechanically Harsh: Thermal Stress on the motor, thereby reducing its life.
What is the first thing you should do when troubleshooting a motor?
For the supply, test first with the motor disconnect open and locked out….Final tests and procedures.
- Listen for unusual noises.
- Smell for smoke or hot insulation.
- Feel the motor for excessive heat or vibration.
- Look for possible obstructions.
How do you test a DOL starter?
Simple it may be but it must be done correctly. With the board energised and the breaker for the DOL starter circuit ‘on’ the ‘start’ button on the DOL starter is pressed. You should hear a click as the contactors are closed (a phase rotation tester plugged in can also indicate that the circuit is now live).
What is difference between VFD and DOL starter?
As a basic starting method, a DOL starter applies full voltage, current, and torque immediately to the motor after the start command. A VFD converts the AC line voltage to DC voltage, and then inverts it back to a simulated AC voltage for the motor.
What is the difference between DOL and Star Delta?
In the DOL starter, it is possible to start a motor with a simple circuit. This can be further explained that in a Star-Delta starter, the motor is started as a star connection and when the motor starts running the connection is changed to the delta. With star connection, the motor takes times less voltage.
When checking a motor starter what can be checked if there is a suspected problem?
Check the motor starter leads for a phase-to-phase or a phase-to-ground short. If either of these two problems exists, check the motor lead wiring. If the motor starter leads are clear, move on to the motor. With the motor still disconnected, check the motor leads for a phase-to-phase or a phase-to-ground short.
What is the Dol starter of induction motor?
Direct online starter DOL diagram DOL starter of three phase induction motors control and power circuit consist MCB or fuse unit which connected in series with the supply. Power contactor, thermal Overload relay for protection and stop and start push button.
What is direct online starter (Dol starter) control diagram?
Direct online starter (DOL starter) control diagram : DOL starter control circuit diagram consist components like Main power contactor, start button, stop push button and overload relay is connected in series this circuit is called control circuit of dol motor starter. All controlling of starter are controlled by this circuit.
Can I use a DOL motor starter for a fan?
DOL Motor Starter can be used, if high starting current cannot cause an excessive voltage drop in the motor circuit. D O L starter use for starting the small motor, compressor, small water pumps, industrial conveyor belts. Fans, air curtains, exhaust fan, blower, etc.
What are the demerits of a Dol starter?
The demerits of dol starter is that gives the highest possible current to motor. Which is 6 to 7 time of rated current of the motor. Besides then DOL starter draws the starting current there also exists a current peak that can rise up to 14 times the rated current since the motor is not energized from the first moment when starting.
