GFCI works fine on a 2-wire circuit, it’s just your typical tester that won’t work. The tester needs a ground to be able to simulate a leak to cause it to trip. It will still trip if there is an actual current leak or if you use the device test button which does not require a ground to work.
Can I use a GFCI outlet without a ground wire?
A GFCI without ground wire isn’t ideal, but it’s better than a 2-prong outlet. A GFCI outlet will work without a ground wire and it’s legal. Installing a GFCI is an acceptable alternative to the dangerous and illegal practice of a bootleg ground. Using a GFCI without ground wire is OK as long as you label it as such.
How many wires does a GFCI outlet have?
A cable consists of 2 or 3 wires. LINE cable: Delivers power from the service panel (breaker panel or fuse box) to the GFCI. If there is only one cable entering the electrical box, it is the LINE cable.
Can you daisy chain GFCI outlets?
With GFCI devices designed for residential installation, there is no need to daisy chain them, as they all are set to trip at around 6mA of leakage current. Daisy chaining GFCIs does not increase protection.
Why does my outlet only have 2 wires?
A two-slot outlet often indicates that the home’s electrical system does not have ground wires for the outlets, switches, or other devices. There may in fact be a grounding system that works via metal electrical boxes and conduit, but often there is simply no ground in most of the household circuits.
Can you wire a GFCI wrong?
If you miswired the GFCI it may not prevent personal injury or death due to a ground fault (electrical shock). If you mistakenly connect the LINE wires to the LOAD terminals, the GFCI will not reset and will not provide power to either the GFCI receptacle face or any receptacles fed from the GFCI.
Can I use a GFCI on an ungrounded circuit?
GFCI’s can be used in place of ungrounded receptacles AND used for those ungrounded receptacles down line on the same branch circuit. All receptacles must be labeled GFCI protected AND Ungrounded Equipment in such cases.
Can you install a GFCI on a 2 wire circuit?
Instructions Turn Off the Power. Turn off the power to the circuit feeding the old outlet by switching off the appropriate breaker (or removing the fuse) in your home’s electrical service Remove the Old Outlet. Confirm Adequate Space in the Box. Install the GFCI. Add the Cover Plate and Test the Outlet

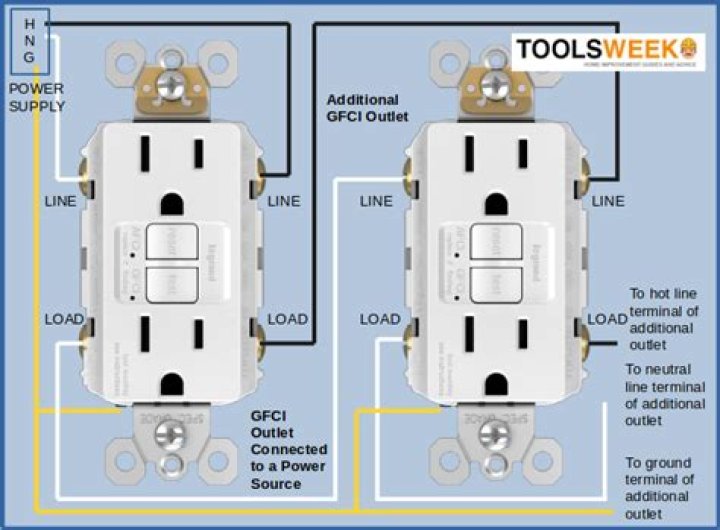

Can 2 GFCI outlets be wired in the same circuit?
Yes, you can use two or more GFCI outlets on the same circuit without any problem at all. The only downside to this is that if one of your GFCI outlets goes down, the others will probably go down as well. That means that you’ll have to reset the outlets either on the outlet itself or from your circuit breaker as a last resort.
How do you install a GFCI outlet?
How To Install A New GFCI Outlet Step 1: Turn off the main circuit breaker in the panel Step 2: Remove the interior panel cover Step 3: Confirm the power is off with voltage tester Step 4: Screw the mounting lugs to new outlet box and fill unused holes Step 5: Mark and drill the hole for the 1/2 inch chase nipple
How to install a GFCI outlet?
Turn Off Power at the Main Circuit. Locate the circuit breaker or fuse that controls the outlet you plan to replace and shut off the power to the circuit.
